Construction Cuplock Aluminum Frame Steel System Kwikstage Ringlock Formwork Scaffold
Scaffolding one-stop Solution China Wuxi Total Scaffolding Manufacturer. Wuxi factory and Tangshan FactoryMain products:
Description
Basic Info
| Model NO. | model A |
| Material | Steel |
| Type | Fixed |
| Structural Style | Multi-Pole Scaffolding |
| Framework | Combined Scaffolding |
| Supporting Mode | Projecting Scaffolding |
| Lapping Form | Full Scaffolding |
| Erection Position | External Scaffolding |
| Move Method | Attached Lifting Scaffolding |
| Scaffolding Part Type | Scaffolding Planks |
| Construction Properties | Installation Scaffold |
| Materials | Q235/Q355 Strength Steel |
| Certificate | ISO, CE, SGS |
| Function | External, Supporting |
| Structure | Multidirectional Type |
| Surface | Hot DIP Galvanized |
| Manufacturability | 30 Containers/Month |
| Transport Package | Steel Frame |
| Origin | Wuxi, China |
| HS Code | 73084000 |
| Production Capacity | 100 Tons Per Day |
Product Description
Scaffolding one-stop SolutionChina Wuxi Total Scaffolding Manufacturer. Wuxi factory and Tangshan FactoryMain products: Ringlock, Cuplock, Octagonlock, Kwikstage, Frame, Haki, Aluminum tower, Shoring prop, Couplers.
Instrument and equipment
Ringlock scaffolding is a mature system. It mainly composes of standard, ledger, brace, plank and so on.

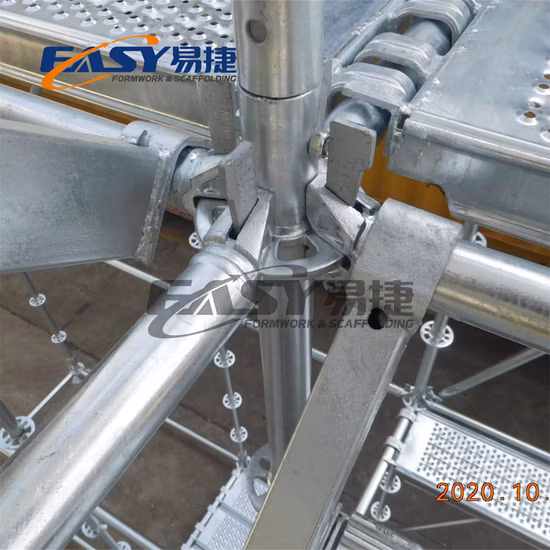

Ringlock node is revolutionary, so makes it faster and easier erection than any other scaffolding. When it comesto connect way, it uses the wedges, ledger end and rosette to lock the vertical and horizontal together by hitting the wedges. The rosette have eight holes, four fix ledger and four fix brace, much better than other scaffolding. Each ledger and brace is independent. So it can make the ledger and brace quick locking and fastening tightly.
Technicial parameter
| Item Name | Materials | Weight | Surface treatment |
| Standard/verticals 050 | Q235, Q35548.3*2.75mm48.3*3.0mm48.3*3.2mm | 2.96kg | Hot dip galvanizedPowder coatedPainted |
| Standard/verticals 100 | 5.33kg | ||
| Standard/verticals 150 | 7.69kg | ||
| Standard/verticals 200 | 10.06kg | ||
| Standard/verticals 250 | 11.86kg | ||
| Standard/verticals 300 | 14.78kg | ||
| Item Name | Materials | Weight | Surface treatment |
| Ledger/Horizontal 073 | Q235, Q35548.3*2.75mm48.3*3.0mm48.3*3.2mm | 3.34kg | Hot dip galvanizedPowder coatedPainted |
| Ledger/Horizontal 1090 | 4.52kg | ||
| Ledger/Horizontal 1400 | 5.53kg | ||
| Ledger/Horizontal 1570 | 6.09kg | ||
| Ledger/Horizontal 2070 | 7.73kg | ||
| Ledger/Horizontal 2570 | 9.37kg | ||
| Ledger/Horizontal 3070 | 11.01kg | ||
| Item Name | Materials | Weight | Surface treatment |
| Diagonal/brace 073*200 | Q235,48.3*2.5mm | 5.34kg | hot dip galvanizedPre-galvanized |
| Diagonal/brace 109*200 | 5.81kg | ||
| Diagonal/brace 140*200 | 6.23kg | ||
| Diagonal/brace 207*200 | 7.56kg | ||
| Diagonal/brace 257*200 | 8.39kg | ||
| Diagonal/brace 307*200 | 9.22kg | ||
| Item Name | Materials | Weight | Surface treatment |
| steel plank/deck 1090 | Q235, 1.2mm1.5mm,1.8mm | 8.58kg | Hot dip galvanizedPre-galvanized |
| steel plank/deck 1400 | 10.85kg | ||
| steel plank/deck 1570 | 12.48kg | ||
| steel plank/deck 2070 | 15.65kg | ||
| steel plank/deck 2570 | 18.91kg | ||
| steel plank/deck 3070 | 22.15kg | ||
| Item Name | Materials | Weight | Surface treatment |
| Hop upsl/bracket 1 | Q235,48.3*3.2mm | 2.5kg | Hot dip galvanizedPowder coatedPainted |
| Hop upsl/bracket 2 | 6.0kg | ||
| Hop upsl/bracket 3 | 9.0kg |
Kwikstage scaffolding
Frame scaffolding
Shoring propAluminum scaffolding tower
Scaffolding Project Case
Load test
Scaffolding Certificate
1. Q: What is your product range?
A: Ringlock, Cuplock, Frame, Couplers, aluminum scaffolding tower, scaffolding accessories.
Q: What is MOQ?
A: Usually we don't have a MOQ, but it depends on the product you are looking for.
2. Q: What kind of payment term do we accept? A: West Union, T/T and L/C.
Q: Can I get samples? Yes, we offer free samples on most itmes if it is not too heavy or big. freight collect
Q: How is your factory's production capacity?
A: Over 500 tons per month.
3. Q; Where have you been exported? We have exported to Asia, South Ametica, Europe, Africa and Middle east.
Q: What kind of international certificate do we offer?
A: CE certificate and SGS test report.
Q: How can you assure the welding quality? A: We have made the flaw detection test which can prove the good welding quality.
4. Q: What is production time? Usually it takes 25-30 days for the first container,production goes faster after the first container once
all raw materials are ready.The more the faster. Partial shipment can be arranged if requested.
5.
Q: How does your factory control quality?
A: Our strict quality control system ensures all products well made step by step. All the raw materials are bought from professional
steel manufacturers, with Mill Test Certificates offered. Our quality control persons inspect and monitor the whole process from
raw material, cutting, pressing, welding, matching, surface finish, finishing process, packing, container loading and transportation.
6.
Q: How is the bearing capacity of your scaffolding?
A: It depends on which kind of scaffolding, scaffolding sizes, and the setup plan. We have many test reports for your reference.
7.
Q: How High can your scaffolding reach to?
A: Normally, we suggest our client to setuo the scaffolding maximum reach to 30 meters. But some of our customers setup our
scaffolding reach to 50 meters. According to safety documents, every 20 meters, we need to make a steel platform where the
scaffolding can be setup continually.
8.
Q: What is your after-sale service? A: All the after-sale problems will be solved based on mutual friendly communication.
In case of quantity shortage,the detailed certificates should be sent to our side in seven days after the goods arrive at your
warehouse. In case of quality discrepancy,such as problems caused by raw material,welding,or surface finish,the detailed
certificates should be sent to our side.If it is confirmed caused by our side for the above two mentioned situations,the loss
will be compensated as the new goods sent to your side in next order.
