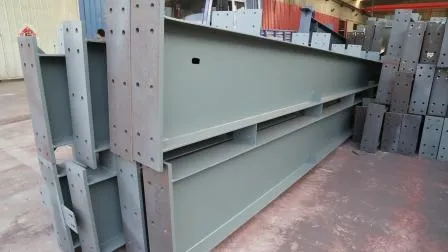

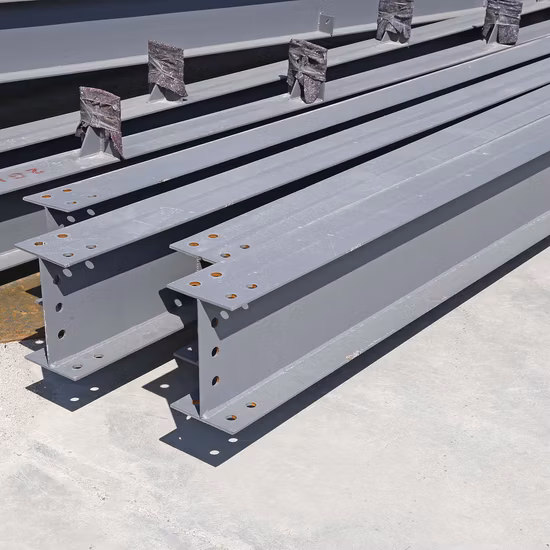

Low Cost Workshop Structural Fabrication Storage Shed Warehouse Construction Steel Building Material with Welded H Section
Description
Basic Info
| Model NO. | TW-KA825 |
| Type of Steel For Building Structure | High-Strength Steel |
| Carbon Structural Steel | Q235 |
| Residential Wall Structure | Wallboard |
| Application | Steel Workshop, Steel Fabricated House, Structural Roofing, Steel Walkway and Floor |
| Size | Customized |
| Frame Type | Portal Frame, Frame Structure |
| Main Frame | Q355b H Steel |
| Sub Frame | Q235B Steel |
| Roof | Single Panel, Sandwich Panel |
| Wall | Single Panel, Sandwich Panel |
| Ventilation | Roof Ventilator |
| Lighting | Plane Skylight |
| Flashing | Color Plate |
| Brick Wall | 0.8m or 1.2m |
| Door | Sliding Door or Rolling Door |
| Window | Plastic Steel Window |
| Feature | Cost Saving, Quick Build, Flexible Layout |
| Downpipe | PVC |
| Edge Cover | 0.5mm Color Sheet |
| Transport Package | Common Package |
| Specification | Customized |
| Origin | Qingdao China |
| HS Code | 7308900000 |
| Production Capacity | 20000 Tons |
Product Description
PRODUCT DESCRIPTION1) Economic:quick installed and saving the cost of construction. 2) Reliable quality: mainly produced in the factory and control the quality. 3) Big space: the max span of prefab steel structure can reach 80meters. 4) Anti-seismic: because the weight is light. 5) Flexible: can be dismantled and enlarged. 6) Beautiful appearance: can use different colors. 7) Long service life that main frame can be used at least 50 years
MAIN BUILDING MATERIAL SPECIFICATIONS&STANDARD
| Standard | ASTMA53/ASTM A573/ASTM A283/Gr.D/BS1387-1985/GB/T3091-2001,GB/T13793-92, ISO630/E235B/JIS G3101/JIS G3131/JIS G3106/ |
| Material | Q195,Q215,Q235B,Q345B,ASTM A283 C,S235JR/S235/S355JR/S355SS440/SM400A/SM400B |
| Technique | Hot Rolled, cold-rolled, Welded |
| Certification | CE, SGS, ISO, CCC, NEMA |
| Size | H(mm) | Tolerance (mm) | B(mm) | Tolerance (mm) | Thickness (mm) | Tolerance (mm) | Weight (kg/m) |
| 8# | 80 | ±2.0 | 50 | ±2.0 | 4.5 | ±0.5 | 7.520 |
| 10# | 100 | ±2.0 | 68 | ±2.0 | 4.5 | ±0.5 | 11.261 |
| 12# | 120 | ±2.0 | 74 | ±2.0 | 5.0 | ±0.5 | 13.987 |
| 14# | 140 | ±2.0 | 80 | ±2.0 | 5.5 | ±0.5 | 16.890 |
| 16# | 160 | ±2.0 | 88 | ±2.5 | 6.0 | ±0.5 | 20.513 |
| 18# | 180 | ±2.0 | 94 | ±2.5 | 6.5 | ±0.5 | 24.143 |
| 20A | 200 | ±3.0 | 100 | ±3.0 | 7.0 | ±0.7 | 27.929 |
| 20B | 200 | ±3.0 | 102 | ±3.0 | 9.0 | ±0.7 | 31.069 |
| 22A | 220 | ±3.0 | 110 | ±3.0 | 7.5 | ±0.7 | 33.070 |
| 22B | 220 | ±3.0 | 112 | ±3.0 | 9.5 | ±0.7 | 36.524 |
| 25A | 250 | ±3.0 | 116 | ±3.0 | 8.0 | ±0.7 | 38.050 |
| 25B | 250 | ±3.0 | 118 | ±3.0 | 10.0 | ±0.7 | 42.030 |
| 28A | 280 | ±3.0 | 122 | ±3.0 | 8.5 | ±0.7 | 43.492 |
| 28B | 280 | ±3.0 | 124 | ±3.0 | 10.5 | ±0.7 | 47.888 |
| 30A | 300 | ±3.0 | 126 | ±3.0 | 9.0 | ±0.7 | 48.084 |
| 30B | 300 | ±3.0 | 128 | ±3.0 | 11 | ±0.7 | 52.794 |
Specifications: 10#-63#AB

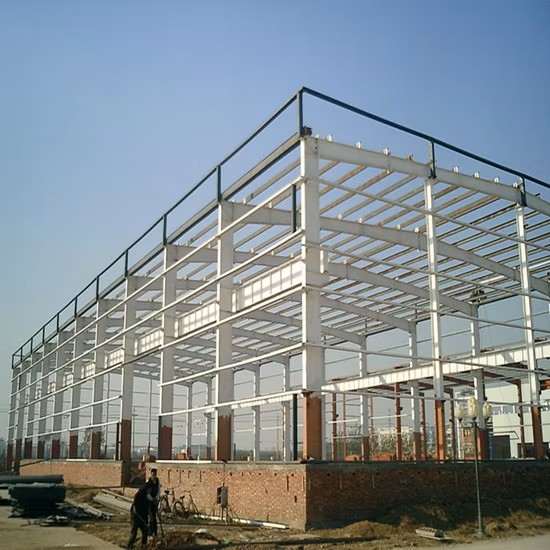

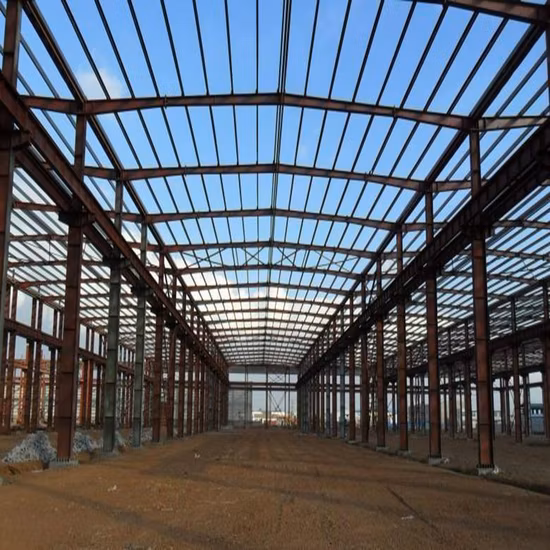

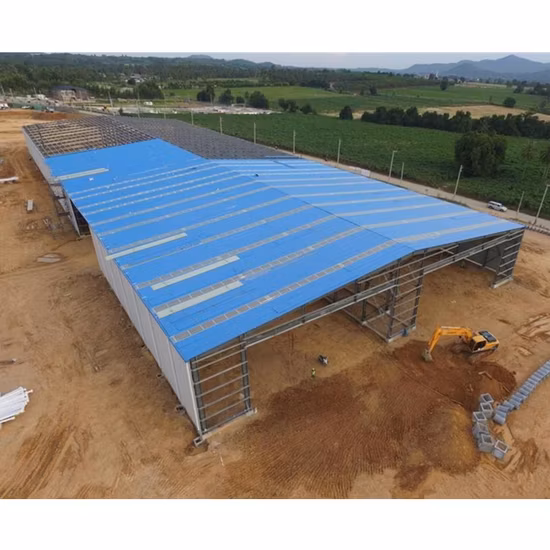

PROJECT EXHIBITION
ABOUT USEstablished in 2011,Qingdao Taiwei Steel Structure Co.,Lt is located in the coastal city of Qingdao with convenient transportation. After more than 10 years of development, Taiwei has become a professional steel structure supplier which specialized in steel structure material processing, selling,designing and installing.The products have been exported to more than 60 countried and areas such as South Africa, Ghana, Argentina,Australia .With the operation philosophy of "Clients come first" and enterprise object of achiving innovation excellence, Taiwei is marching forward with big strides towards a internationalized enterprise.And we can offer" One stop service from design, manufacture, deliver to installation and after-service".
OUR ADVANTAGES
1. Certificate: ISO, BV, CE, SGS2. Feedback within 24 hours3. Cheap price based on good quality4. Quick delivery5. Production Capacity:3000tons/Month6. Experience for ten years, specilized in manufacturing and exporting7. Customers from many continents, such as North America, South America, Europe, Africa, etc.
MAIN EXPORT MARKET
Middle East, Africa,North and South America,East and West Europe,Southeast Aisa Austriailia
PACKING & DELIVERY
Packaging Detail: Suitable package for the long sea transport; In bundle with bulk; As customer's requirements. Delivery Date:15-45 days after receiving the deposit
FAQ
1.How about the cost of prefabricated building?
Compared with concrete buildings, assembly buildings are lighter in quality and more economical. Factory production to reduce the labor intensity and time of the installation workers at the construction site.
2.How long is the service life of the portal H-type steel frame?
The service life of the main steel frame can last for 50years.
3.Is the steel frame safe and stable?
Yes, here is the statistics: Earthquake resistance: Grade 8 or more, Wind resistance: Grade 12(wind speed≤ 120km/h)
4.What is the advantages of the steel frame compared to the traditional building?
The main advantages are light, economy, and the workers' labor intensity is low. It can be assembled quickly.
5.How can I assemble the portal H-type steel frame?
All the steel components will be bolted, no soldering, all the walls and roof structures, the floor will be fixed with self tapping screws or nails, and the general team of locksmiths can do well. If you need, we can arrange our technicians to guide the installation on site, or our construction team to install it for you.
